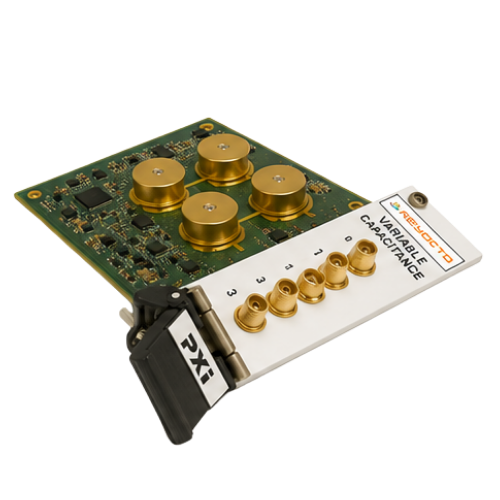

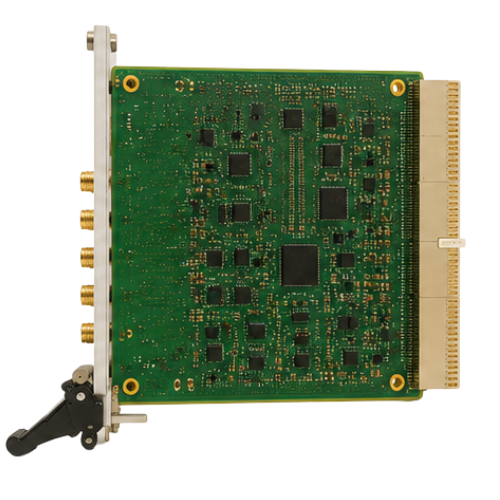

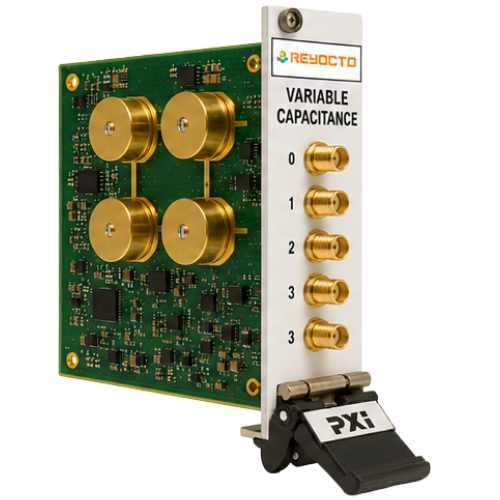

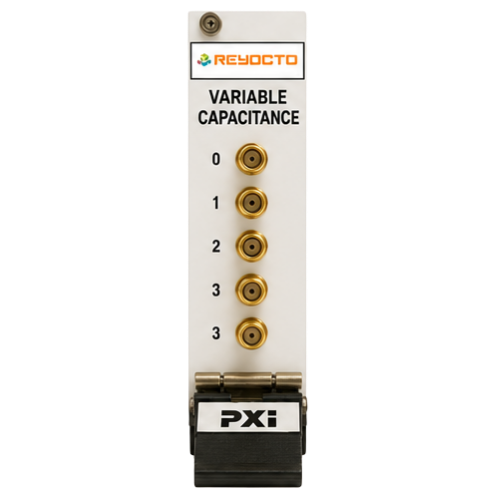

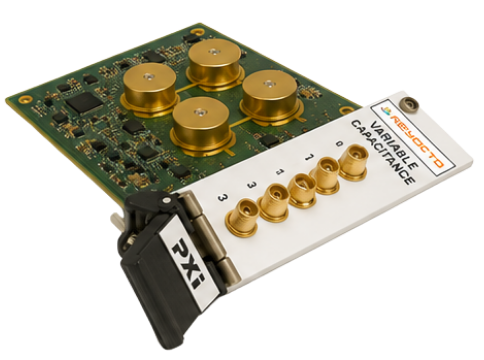

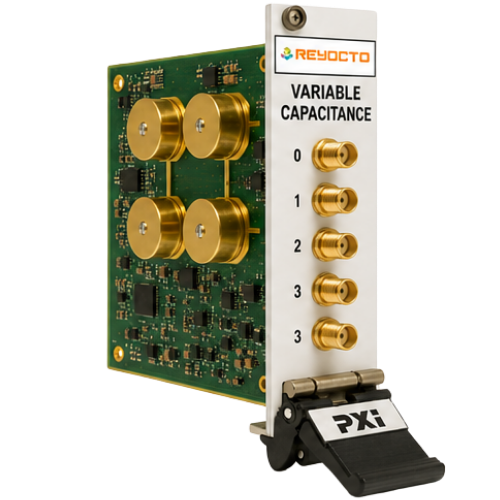

Variable Capacitance Module (VCM)
Precise Digital Capacitance Control for Modern Testing
Reyocto Infotech’s Variable Capacitance Module (VCM) delivers precise, digitally controlled capacitance across three independent channels for advanced electronic testing. Designed for laboratories and automated test environments, it offers flexible configuration, fast response, seamless system integration, and reliable performance to simplify capacitance control for diverse engineering and research applications.
Precise Digital Capacitance Control for Modern Testing
Key Features of Our Variable Capacitance Module
Provides three individually adjustable capacitance channels for flexible and accurate testing across multiple electronic applications.
Microcontroller-controlled capacitor arrays deliver accurate capacitance adjustment with rapid response and dependable measurement consistency.
Supports independent, parallel, serial, and hybrid channel configurations to meet diverse testing and validation requirements.
USB communication, graphical interface, VI support, and LED indicators simplify configuration, monitoring, and real-time operational feedback.
PXIe-compatible 3U single-slot design enables seamless integration into existing automated test and measurement platforms.
Offers fine capacitance resolution, high accuracy, and response times below 100 milliseconds for efficient electronic testing.
Product Highlights
Technical Specifications of Our
Variable Capacitance Module
Technical Specifications of Our Variable Capacitance Module
- Capacitance Range: 10 pF – 12,000 pF
- Capacitance Step: 10 pF
- 10 pF – 160 pF: ±5% of Output
- 170 pF – 12,000 pF: ±2% of Output
- <100 ms
- Independent Channels
- Parallel Connection
- Serial Connection
- Hybrid Connection
- Microcontroller-Controlled Capacitor Arrays
- USB Communication for Setpoints & Status Feedback
- LED Indicators for Channel Activity
- Graphical User Interface (GUI) & LabVIEW™ VI Support
- Form Factor: PXIe 3U, Single-Slot Module
- Communication Interface: USB-C to USB-A
- Power Supply: PXIe Chassis (12 V / 3.3 V)
- Maximum Channel Voltage: 10 V
- Dimensions (L × W × H): 115 × 190 × 25 mm
Why Choose the Variable Capacitance Module
By Reyocto Infotech
Precision Engineering
Designed to deliver stable, repeatable capacitance control for demanding research, development, validation, and production testing applications.
Versatile Applications
Supports a wide range of electronic testing, characterization, simulation, and validation requirements across multiple engineering industries efficiently.
Faster Testing
Enables quick capacitance adjustments and automated workflows, helping engineers reduce testing time while improving overall productivity significantly.
Easy Integration
Compatible with existing PXIe-based test platforms, allowing seamless deployment into laboratory and automated testing environments without complexity.
Dependable Performance
Built with high-quality components to ensure consistent operation, long-term reliability, and accurate results throughout continuous testing processes.
Expert Support
Backed by Reyocto Infotech's experienced engineering team, providing technical guidance, customization, and responsive after-sales support for every project.
Benefits of Our Variable Capacitance Module
- Precise Digital Capacitance Adjustment
- Faster Electronic Testing Cycles
- Flexible Multi-Channel Configuration
- Reliable Laboratory Test Performance
- Easy Automated System Integration
- High Accuracy Across Ranges
Applications of Our Variable Capacitance Module
- Electronic Component Testing
- Automated Device Characterization
- Capacitance Sweeping Systems
- Tuneable Load Testing
- Signal Conditioning Simulation
- Research Laboratory Applications
Trusted By Industry Leaders
Looking for a Reliable Variable Capacitance Module?
Looking for a Reliable Variable Capacitance Module?
Looking for a precision Variable Capacitance Module? Connect with Reyocto Infotech for accurate capacitance control and seamless testing integration today.
Frequently Asked Questions
A Variable Capacitance Module provides digitally adjustable capacitance values, enabling engineers to perform accurate electronic testing, component characterization, signal simulation, and automated validation with greater flexibility.
The module features three fully independent capacitance channels, allowing simultaneous control, adjustment, and testing for multiple electronic circuits or validation applications efficiently.
Yes. The Variable Capacitance Module features a PXIe-compatible form factor, enabling seamless integration into existing PXIe-based automated test and measurement platforms with minimal effort.
The module supports adjustable capacitance from 10 pF to 12,000 pF with fine 10 pF resolution, ensuring precise control across diverse testing requirements.
Yes. USB communication, graphical software interface, and VI support enable automated capacitance control, status monitoring, and integration with modern electronic testing workflows efficiently.
The Variable Capacitance Module is ideal for electronic testing, automated device characterization, capacitance sweeping, signal conditioning simulation, research laboratories, and tuneable load testing applications.
